PCB

G-EHL06

CPU

Intel? Elkhart Lake Celeron? J6412

Memory

Slot Number

1*SO-DIMM

Type

DDR4 3200MT/s

Max Size

16GB

Channels

1

Graphics

Controller

Intel? UHD Graphics for 10th Gen Intel? Processors

Mini-HDMI

1

EDP

2

Multi Display

3

Storage

SATA

1

M.2

1, (Key-E，2230，支持 Wi-Fi&BT)

1,(Key-M，  2242，  SATA3.0 協議，  和 NVME X2 協議自適應 )

COM

Port Number

4

Mode

2×RJ45 串口 ( 標準 RS232 模式 ), 2×TTL 串口

PWR

COM1,COM2 為可恢復保險絲跳選控制 5V/12V/RI 可選 JCOM3，JCOM4 為可恢復保險絲跳選

Expansion Slot

M.2

1 (Key-M，2242， SATA3.0 協議， 和 NVME X2 協議自適應 )

IO & Connector

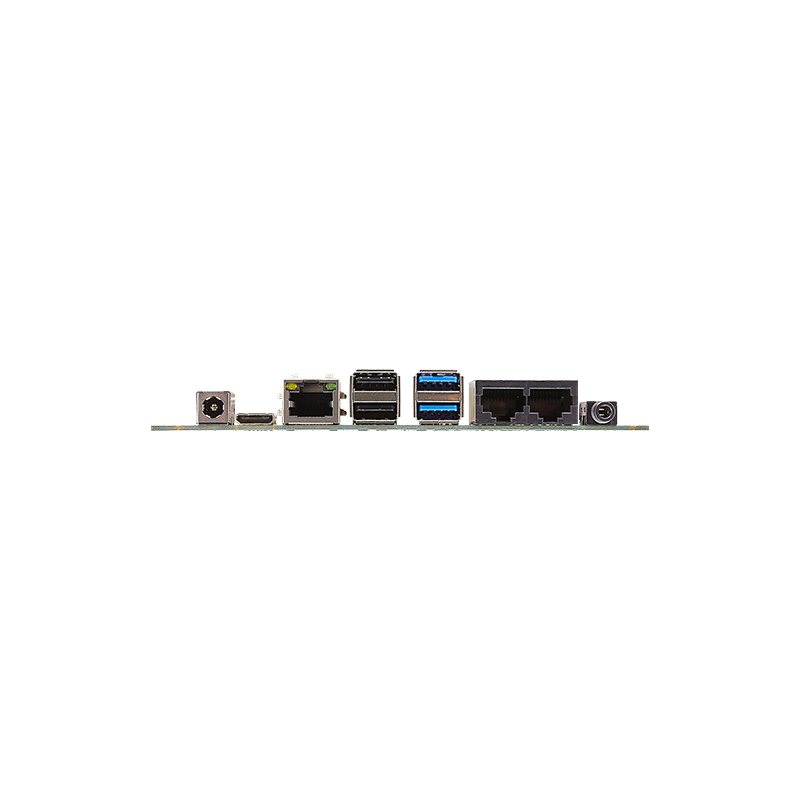

Rear I/O

1×DC_IN

2×RJ48 串口

1×Mini-HDMI

2×USB2.0

(1 個雙層 USB2.0 接口 )

1×RJ45

Audio,(1×Line-out，  1×Mic- in 二合一 )

2×USB3.0

(1 個雙層 USB3.0 接口 )

/

Internal Connector

1×EDP1

2×M.2

1×EDP2

1×SATA3.0

1×CPU_FAN

1×DC12_OUT2

1×JLPT

1×DC12_OUT1

1×SPK

1×FPC

1×F_PANEL

2×JUSB

1×DDR4 SO-DIMM

2×JCOM

Internal Jumper

1×CLR_COMS

1×PANEL_PWR

Mechanical & Environment

Dimension

150×105mm

PWR Input

DC12V

Operation

-10~50℃ , 5%~95%RH,non-condensing

Storage

-20~75℃ , 5%~95%RH,non-condensing
